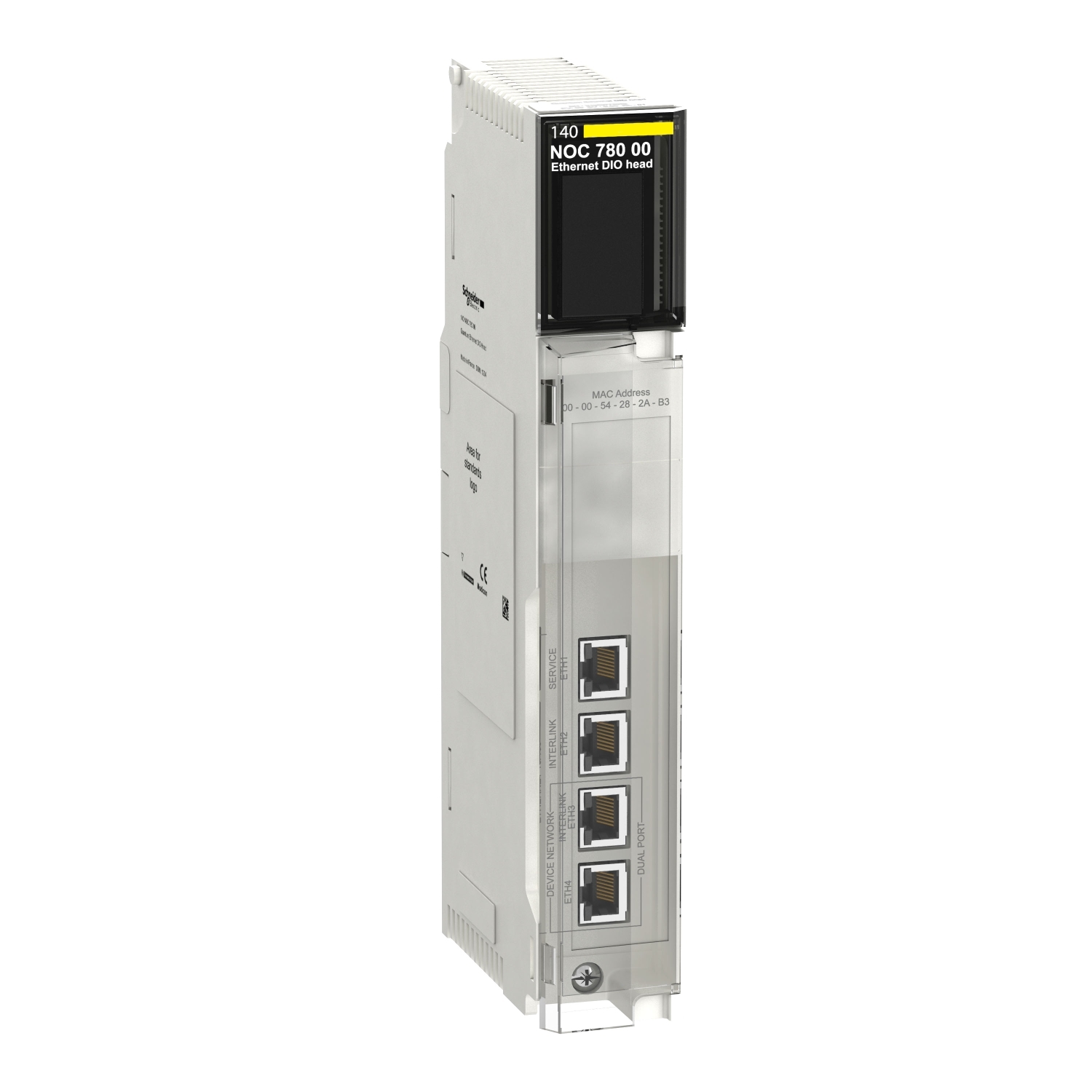

Ethernet I/O head module, Modicon Quantum, Modbus TCP, EtherNet I/P, 10/100Mbit/s
140NOC78000
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Ethernet I/O head module |
| Product Compatibility | 140CPU6xxxx |
|---|---|
| Communication Port Protocol | Modbus TCP EtherNet/IP |
| Exchange mode | Full duplex |
| Maximum number of connections | 128 |
| Transmission Rate | 10/100 Mbit/s |
| Redundancy | Yes hot standby redundant architecture |
| Topology | Redundant ring Daisy chain loop |
| Web server | Embedded |
| communication service | NTP time synchronization Embedded 4-port switch CIP Explicit messaging (client messaging) FDR server Quality of Service (QoS) CIP implicit messaging (I/O communication) SNMP agent Device Type Manager (DTM) DHCP/BootP server |
| Ethernet service | Rapid Scanning Tree Protocol (RSTP) |
| Transmission support medium | Twisted pair |
| Port Ethernet | RJ45 10BASE-T/100BASE-TX |
| marking | CE |
| Supply | Via the power supply of the rack |
| Local signalling | for communication on the bus (Active) 1 LED (green) for configuration status (Ready) 1 LED (green) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green/red) for device network status (Net Status 1) 1 LED (green/red) for extended DIO network status (Net Status 2) 1 LED (green/red) |
| Module format | Standard |
| Net Weight | 0.761 lb(US) (0.345 kg) |
| Standards | EN 61131-1 IEC 61000-4-16 EN 55011 UL 508 EN 61131-2 FM Class 1 Division 2 CSA C22.2 No 142 |
|---|---|
| Product Certifications | Merchant Navy GOST hazardous location class 1, division 2 LR C-tick |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 10…95 % 140 °F (60 °C) without condensation |
| Category | US1PC2118150 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595864153247 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 in (4.5 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.6 in (32.0 cm) |
| Package 1 Weight | 19.6 oz (557.0 g) |
| Warranty | 18 months |
|---|
