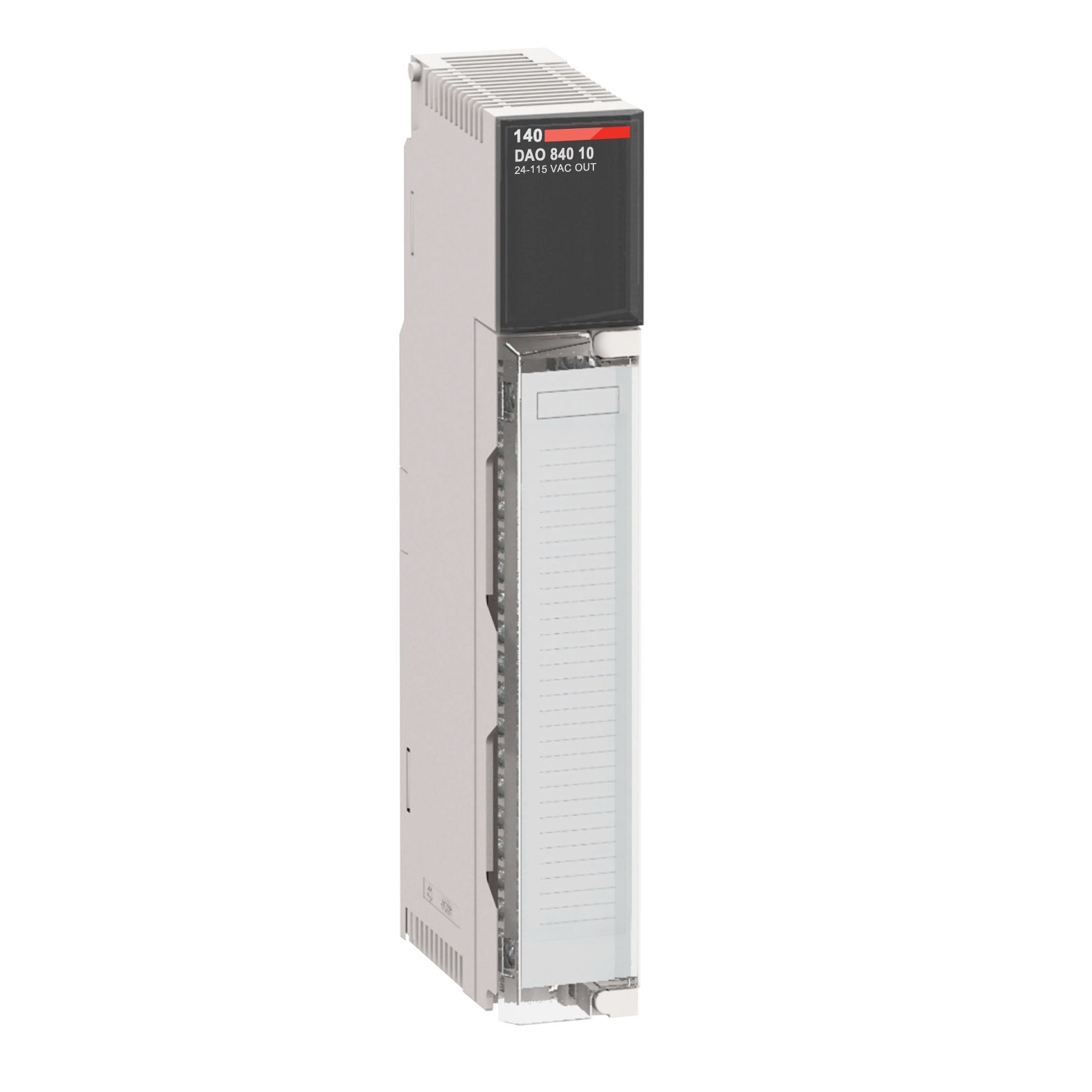

discrete output module Modicon Quantum – 16 O – 83..253 V AC

140DAO84210

Main
Range of Product	Modicon Quantum automation platform
Product or Component Type	AC discrete output modules
Discrete output number	16

Complementary
Group of channels	4 groups of 4 channels
Supply frequency	47…63 Hz
Maximum voltage drop	1.5 V
Discrete output voltage	83…253 V AC
Addressing requirement	1 output word
Absolute maximum output	300 Vrms 10 s AC 400 Vrms 1 cycle AC
Maximum load current	2 mA rms 115 Vrms off state leakage per output 2.5 mA rms 230 Vrms off state leakage per output 3 A rms 170…253 V per output 4 A rms 85…132 V per output 16 A rms per module 4 A rms per group
Surge current	10 A during 3 cycles per point 20 A during 2 cycles per point 30 A during 1 cycle per point 25 A during 3 cycles per group 30 A during 2 cycles per group 45 A during 1 cycle per group
DV/dt	400 V/ms
Response Time	<= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0
Fault indication	Blown fuse Loss of field power
Protection Type	Internal by RC filter Internal output protection by 5 A fuse
Power dissipation	1.85 + (1.1 V x total module load current)
marking	CE
Local signalling	for bus communication is present (Active) 1 LED (green) for external fault detected (F) 1 LED (red) for input status 16 LEDs (green)
Bus current requirement	350 mA
Module format	Standard
Net Weight	0.99 lb(US) (0.45 kg)

Environment
Product Certifications	cUL FM Class 1 Division 2
Standards	UL 508 CSA C22.2 No 142
Electromagnetic compatibility	Electrostatic discharge immunity test – test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80…1000 MHz) conforming to IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating altitude	<= 16404.2 ft (5000 m)
