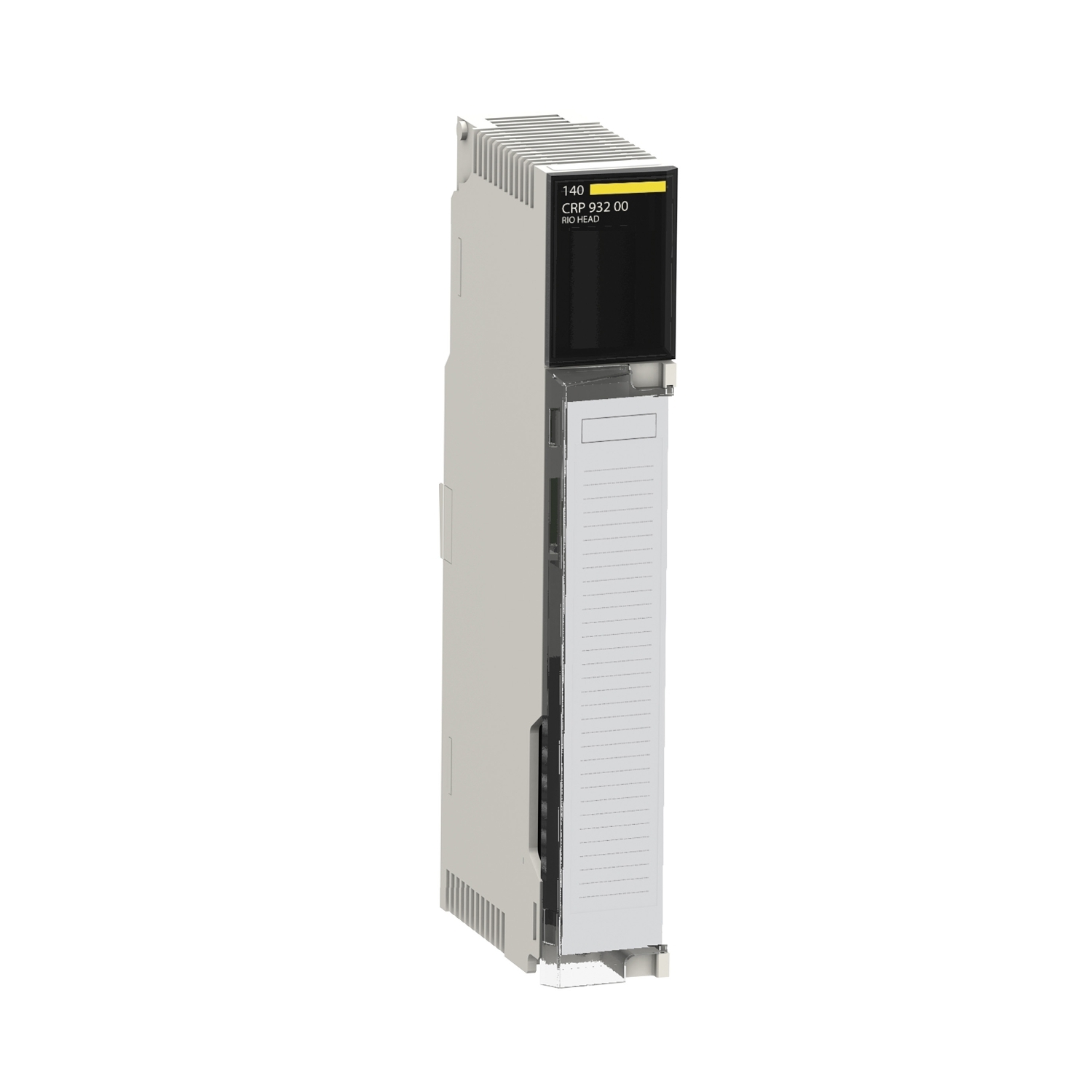

RIO head-end adaptor module Modicon Quantum – 2 connectors with redundant cable
140CRP93200
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | RIO head-end adaptor module |
| Product Compatibility | Symax (any mix) Quantum 200/500/800 series |
|---|---|
| Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Memory check LAN controller check Power up |
| Power dissipation in W | 3 W 2 channels |
| marking | CE |
| Bus current requirement | 750 mA 2 channels |
| Module format | Standard |
| Product Certifications | FM Class 1 Division 2 |
|---|---|
| Standards | UL 508 CSA C22.2 No 142 CUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32.0000000000…140.0000000000 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40.0000000000…185.0000000000 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595861133761 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.0 in (5.0 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.2 in (31.0 cm) |
| Package 1 Weight | 18.7 oz (531.0 g) |
| Warranty | 18 months |
|---|
