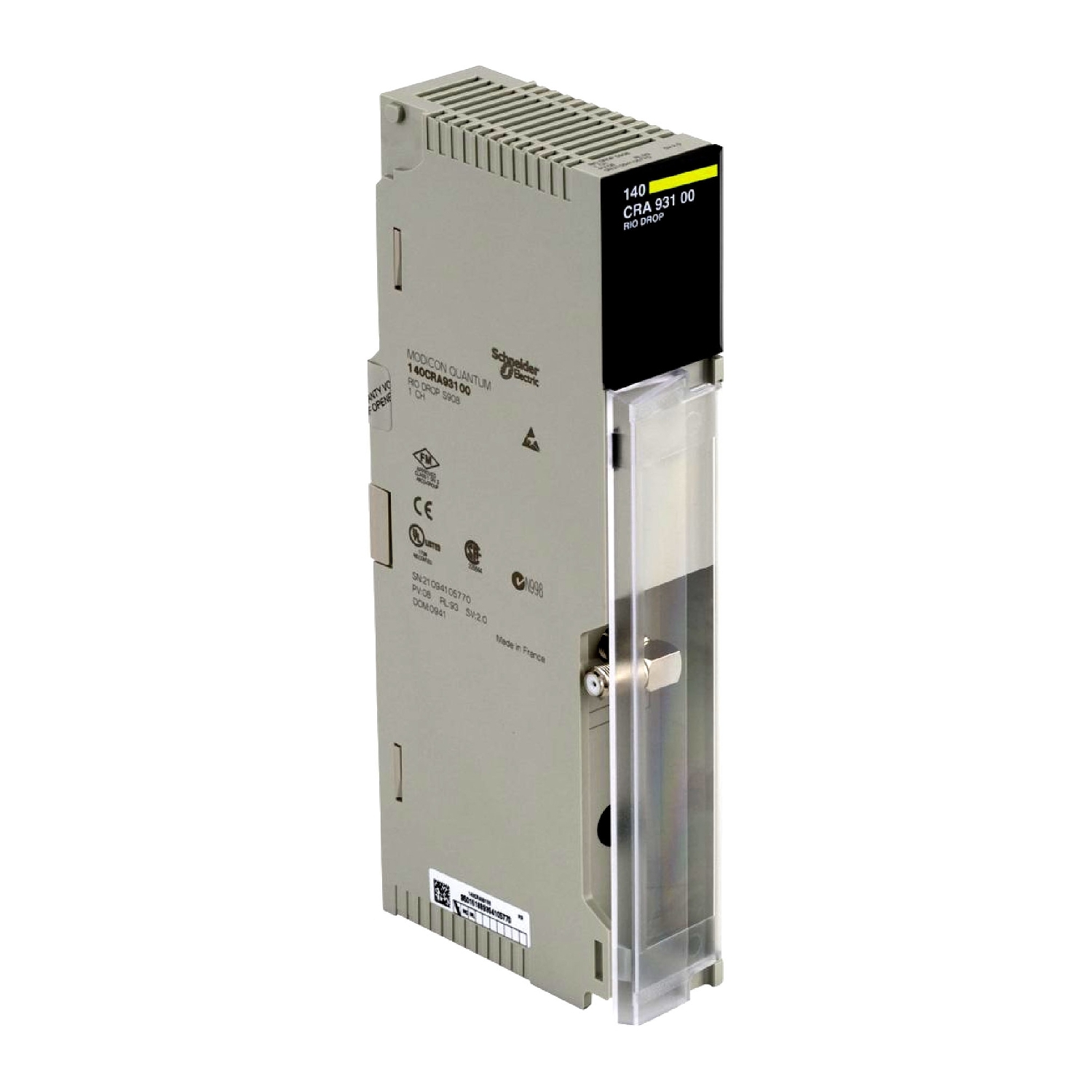

140CRA93100 RIO drop adaptor module Modicon Quantum – 1 connector with single cable
MXN $52,953.00 - (IVA Incluido) + Envío
9 disponibles
Buy it now
Marca:Schneider Electric
RIO drop adaptor module Modicon Quantum – 1 connector with single cable
140CRA93100
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | RIO drop adaptor module |
| Product Compatibility | Quantum |
|---|---|
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Executive checksum RAM address/data Power up and runtime |
| Power dissipation in W | 3 W 1 channel |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
|---|---|
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595861133778 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.850 in (4.700 cm) |
| Package 1 Width | 6.496 in (16.500 cm) |
| Package 1 Length | 12.205 in (31.000 cm) |
| Package 1 Weight | 17.954 oz (509.000 g) |
| Warranty | 18 months |
|---|
| Peso | 5 kg |
|---|---|
| Dimensiones | 15 × 15 × 15 cm |
