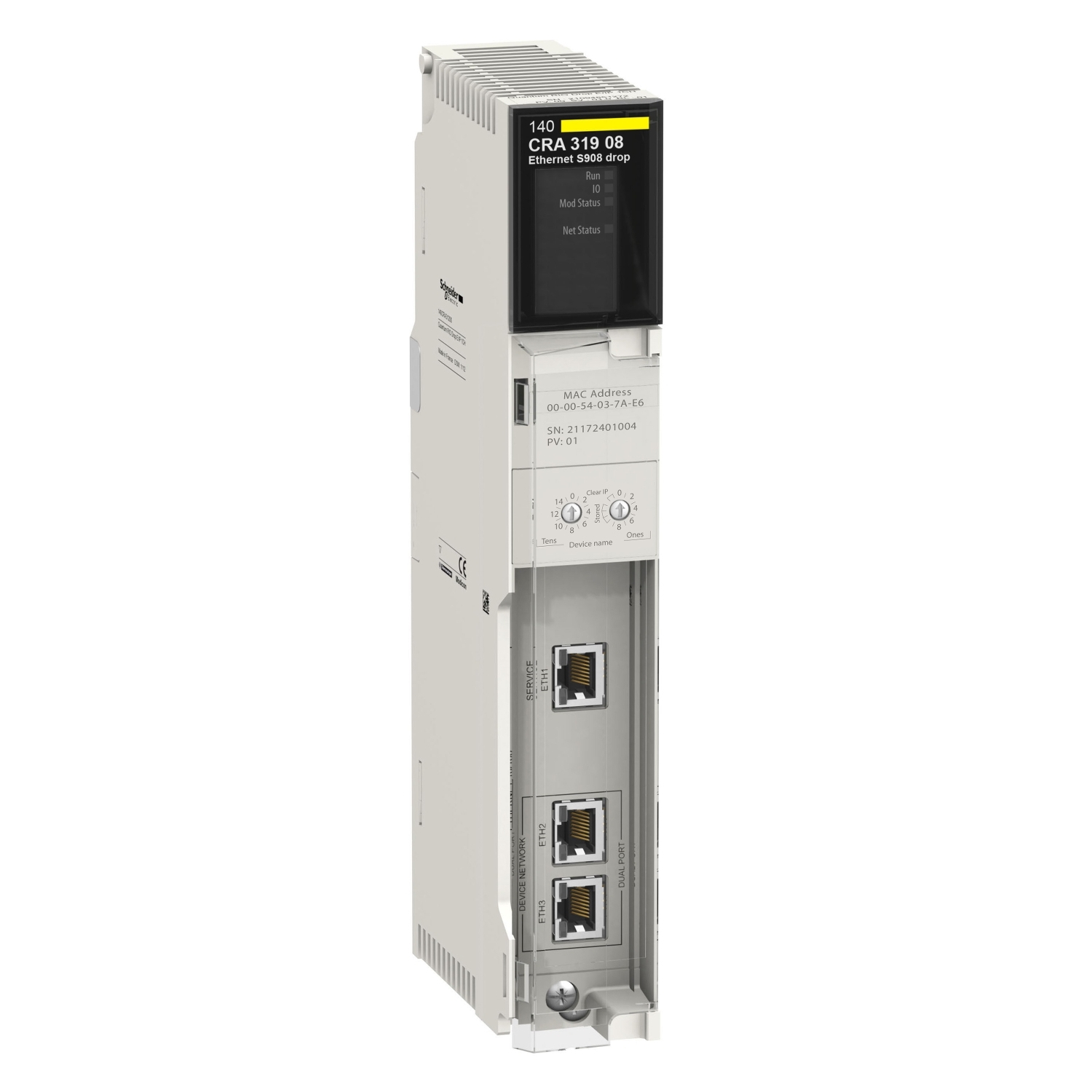

M580 Quantum S908 RIO Drop Adapter
140CRA31908
| Range of Product | Modicon Quantum |
|---|---|
| Product or Component Type | Ethernet RIO drop adaptor |
| Number of port | 3 |
| Integrated connection type | Ethernet IP/Modbus TCP service port Ethernet IP/Modbus TCP device network |
| Communication Port Protocol | Ethernet IP/Modbus TCP |
| product destination | Modicon Quantum |
| Device Application | To provide the ability for a M580 system to control Modicon S908 coaxial bus |
| communication service | The input data are collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor |
| Topology | Daisy chain loop S908 bus |
|---|---|
| Local signalling | for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green/red) for RUN 1 LED (green) for I/O 1 LED (red) |
| Product Compatibility | BMEP586040 BMEH584040 BMEP585040 BMEH586040 BMEP584040 |
| Environmental characteristic | Standard environment Hazardous location class I division 2 EN/IEC 61131-1 |
| Width | 6.6 in (167 mm) |
| Height | 2.0 in (50 mm) |
| Net Weight | 1.221 lb(US) (0.554 kg) |
| Product Certifications | UL 508 CE C-tick |
|---|---|
| Standards | IEC 61000-4-16 CSA C22.2 No 142 EN 55011 |
| IP degree of protection | IP20 conforming to EN 61131-2 IP20 conforming to IEC 60527 |
| Overvoltage category | Class I EN 61131-2 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 60068-2-2 32…140 °F (0…60 °C) IEC 60068-2-2 |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) IEC 60068-2-2 -40…185 °F (-40…85 °C) IEC 60068-2-2 |
| Vibration resistance | 3.5 mm constant amplitude 0.5…8.4 Hz)EN 61131-2 1 gn constant acceleration 8.4…150 Hz)EN 61131-2 |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative humidity | 93 % conforming to IEC 60068 |
| Category | US1PC3418160 |
|---|---|
| Discount Schedule | PC34 |
| GTIN | 3606481207470 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.969 in (5.000 cm) |
| Package 1 Width | 6.496 in (16.500 cm) |
| Package 1 Length | 12.402 in (31.500 cm) |
| Package 1 Weight | 20.882 oz (592.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 10.119 lb(US) (4.590 kg) |
