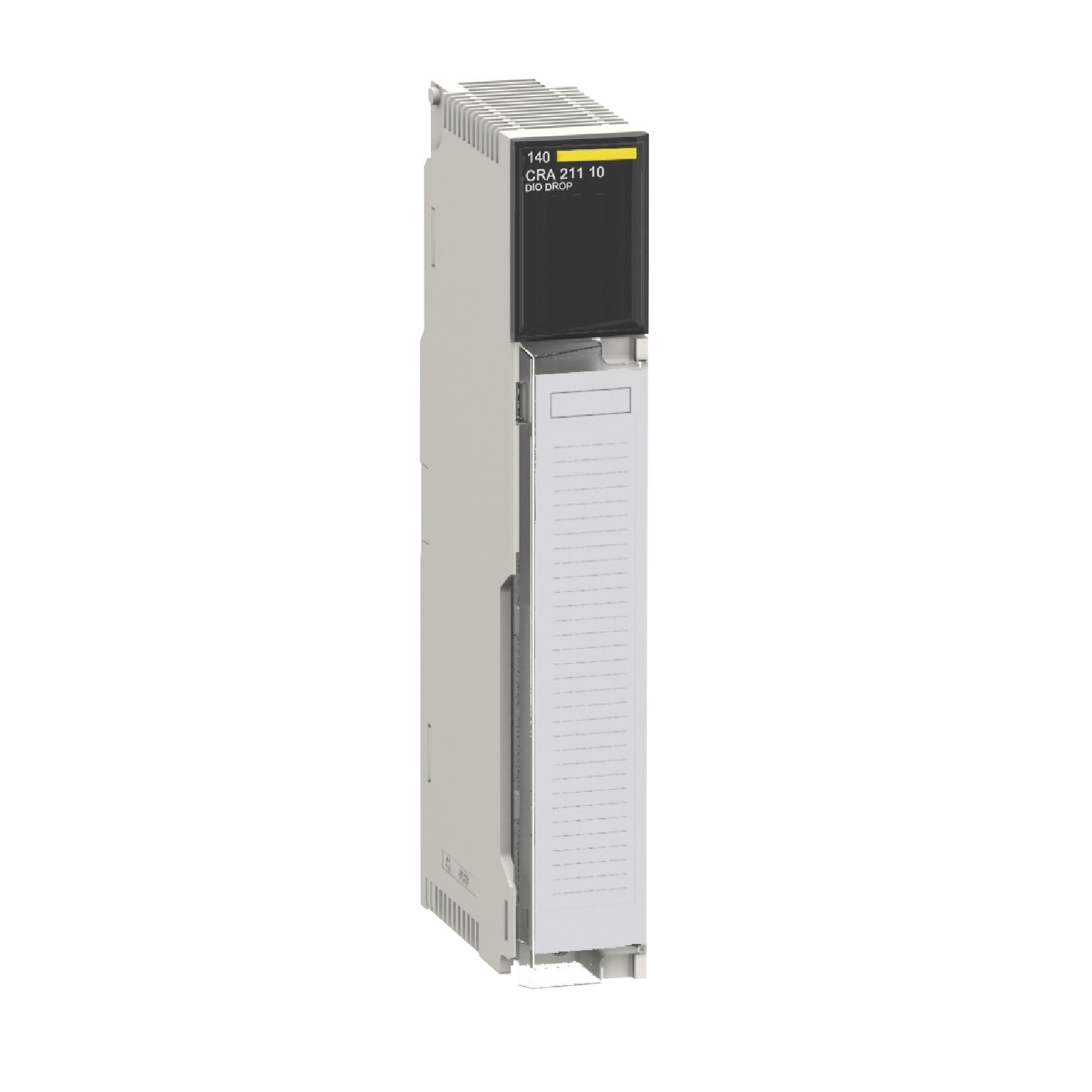

DIO drop interface Modicon Quantum – 115/230 V AC – 1 single port

140CRA21110

Main
Range of Product	Modicon Quantum automation platform
Product or Component Type	DIO drop interface

Complementary
Number of port	1 single
[Us] rated supply voltage	115/230 V AC
Supply voltage limits	85…276 V
Supply frequency	47…63 Hz
Maximum supply current	0.2 A 115 V 0.4 A 230 V
Inrush current	10 A 115 V 20 A 230 V
Rated power in VA	50 VA
Associated fuse rating	1.5 A
Output voltage	5.1 V
Nominal output current	3 A
Minimum load current	0 A
Short-circuit protection	With
Output overvoltage protection	With
I/O words	30 I/32 O
Typical backplanes	3 positions 2 positions 6 positions 16 positions 10 positions 4 positions
Diagnostics startup	RAM address RAM Checksum
Diagnostics run time	RAM address RAM Checksum
Power dissipation in W	11 W
Connections – Terminals	Terminal block, 7 poles
Module format	Standard

Environment
Resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating altitude	<= 16404.2 ft (5000 m)
protective treatment	TC
Standards	UL 508
Product Certifications	CSA Class 1 Division 2 UL DNV C-tick GOST

Ordering and shipping details
Category	US1PC2118155
Discount Schedule	PC21
GTIN	3595861136731
Returnability	No
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1.969 in (5.000 cm)
Package 1 Width	6.496 in (16.500 cm)
Package 1 Length	12.402 in (31.500 cm)
Package 1 Weight	24.303 oz (689.000 g)
