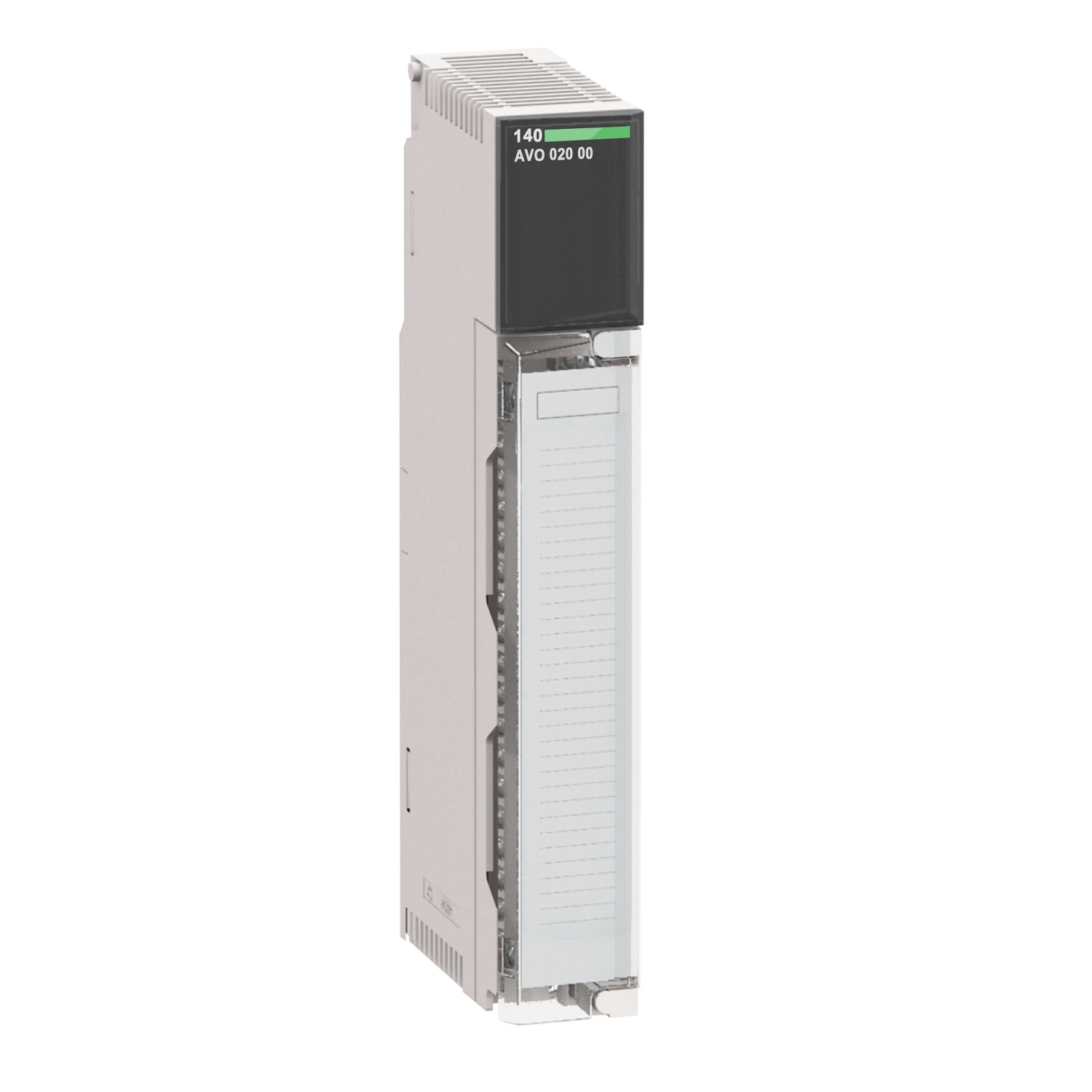

analog output module Modicon Quantum – 4 O
140AVO02000
Range of Product | Modicon Quantum automation platform |
---|---|
Product or Component Type | Analogue output module |
Analogue output number | 4 |
---|---|
Addressing requirement | 4 output words |
Analogue output range | +/- 10 V >= 1000 Ohm bipolar voltage +/- 5 V >= 500 Ohm bipolar voltage 0…10 V >= 1000 Ohm unipolar voltage 0…5 V >= 500 Ohm unipolar voltage |
Analogue output resolution | 12 bits |
Analogue output current | -10…10 mA |
Source resistance | 0.1 Ohm |
Maximum cable distance between devices | 1312.3 ft (400 m) |
Absolute accuracy error | +/- 0.15 % of full scale 77 °F (25 °C) |
Linearity | +/- 1 LSB |
Accuracy drift according to temperature | 0.003 % of full scale/°C unipolar 0.004 % of full scale/°C bipolar 0.005 % of full scale/°C maximum unipolar 0.007 % of full scale/°C maximum bipolar |
Isolation between channels | 500 V for 1 minute 47…63 Hz AC |
Isolation between channels and bus | 780 V for 1 minute AC |
Update time | 3 ms |
Setting time | 700 µs to +/- 0.1 % of the final value maximum |
Bus current requirement | 700 mA |
Maximum power dissipation in W | 4.5 W |
Associated fuse rating | 0.063 mA 3 AG fast blow 250 V |
marking | CE |
Local signalling | for bus communication is present (Active) 1 LED (green) for external fault 1 LED (red) for channel is turned on 4 LEDs (green) for channel fault 4 LEDs (red) |
Module format | Standard |
Net Weight | 0.7 lb(US) (0.3 kg) |
Product Certifications | FM Class 1 Division 2 cUL |
---|---|
Standards | UL 508 CSA C22.2 No 142 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Category | US1PC2118155 |
---|---|
Discount Schedule | PC21 |
GTIN | 3595861126626 |
Returnability | No |
Country of origin | FR |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 2.0 in (5.0 cm) |
Package 1 Width | 6.5 in (16.5 cm) |
Package 1 Length | 12.4 in (31.5 cm) |
Package 1 Weight | 16.5 oz (467.0 g) |
Warranty | 18 months |
---|
