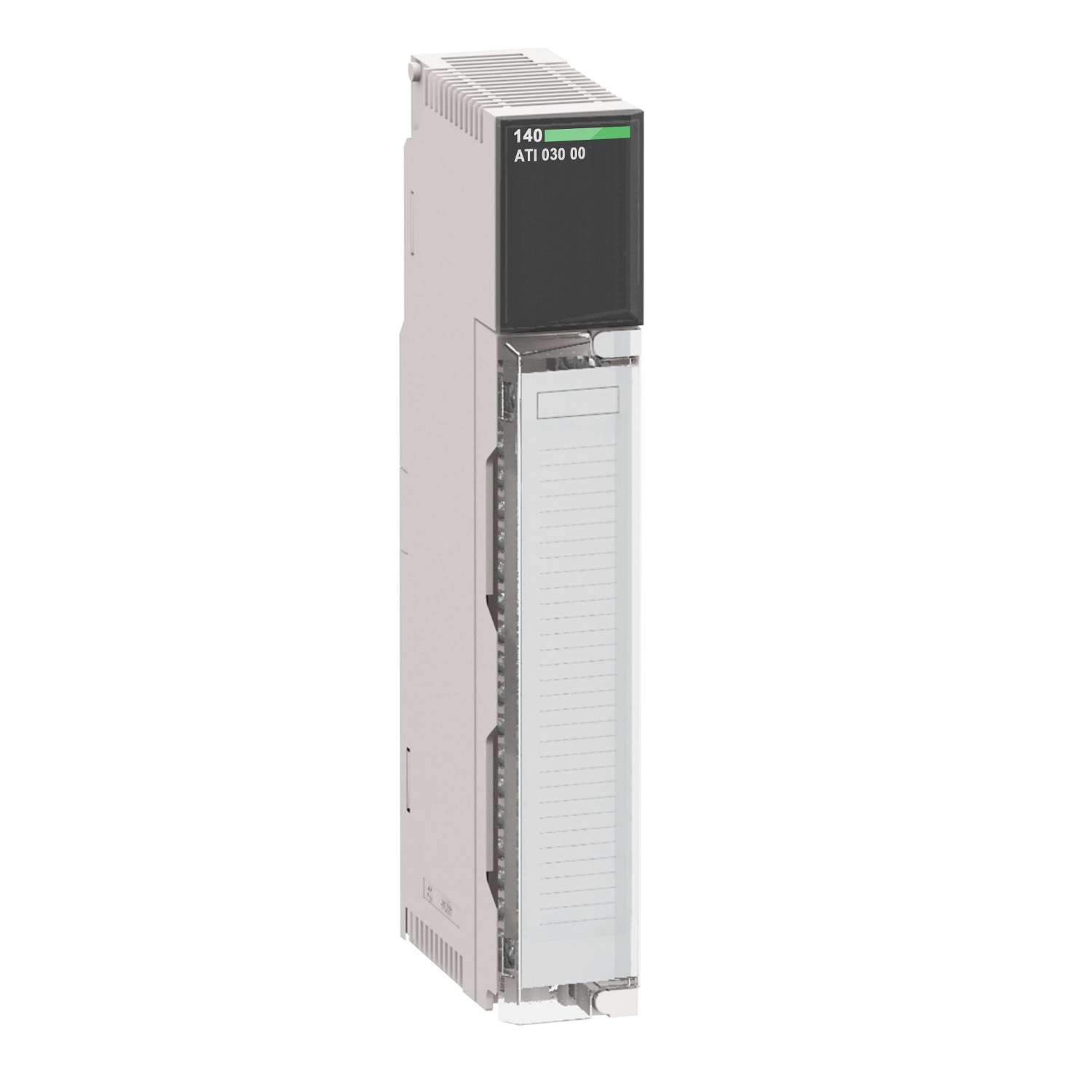

analog input module Modicon Quantum – 8 I thermocouple
140ATI03000C
Range of Product | Modicon Quantum automation platform |
---|---|
Product or Component Type | Analogue input module |
Type of filter | Notch filter – 3 dB at 50/60 Hz Single pole low pass – 3 dB at 20 Hz |
Analogue input number | 8 |
---|---|
Addressing requirement | 10 input words |
Analogue input type | Thermocouple – 210…760 °C thermocouple J Thermocouple – 270…1000 °C thermocouple E Thermocouple – 270…1370 °C thermocouple K Thermocouple – 270…400 °C thermocouple T Thermocouple – 50…1665 °C thermocouple R Thermocouple – 50…1665 °C thermocouple S |
Analogue input resolution | 16 bits |
Absolute accuracy error | +/- 2 °C plus + 0.1 % of reading thermocouple E +/- 2 °C plus + 0.1 % of reading thermocouple J +/- 2 °C plus + 0.1 % of reading thermocouple K +/- 2 °C plus + 0.1 % of reading thermocouple T +/- 4 °C plus + 0.1 % of reading thermocouple R +/- 4 °C plus + 0.1 % of reading thermocouple S |
Linearity error | 1 °C, 0.1 °C, 1 F, 0.1 F – 210…760 °C 1 °C, 0.1 °C, 1 F, 0.1 F – 270…1000 °C 1 °C, 0.1 °C, 1 F, 0.1 F – 270…1370 °C 1 °C, 0.1 °C, 1 F, 0.1 F – 270…400 °C 1 °C, 0.1 °C, 1 F, 0.1 F – 50…1665 °C |
Accuracy drift according to temperature | 0.15 µV/°C + 0.0015 % of reading/°C max low level voltage |
Common mode rejection | > – 120 dB 50/60 Hz |
Isolation between channels and bus | 1780 V AC 60 s 2500 V DC 60 s |
Isolation between channels | 300 V DC 220 V AC |
Update time | 1000 ms |
Fault type | Broken wire Overtacking scale |
marking | CE |
Cold junction compensation | Internal 32.0000000000…140.0000000000 °F (0…60 °C) |
Local signalling | for bus communication is present (Active) 1 LED (green) for external fault 1 LED (red) for channel is turned on 8 LEDs (green) for channel fault 8 LEDs (red) |
Bus current requirement | 280 mA |
Power dissipation in W | 1.5 W |
Module format | Standard |
Net Weight | 0.7 lb(US) (0.3 kg) |
protective treatment | Conformal coating Humiseal 1A33 |
---|---|
Standards | UL 508 CSA C22.2 No 142 |
Product Certifications | cUL FM Class 1 Division 2 |
Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32.0000000000…140.0000000000 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40.0000000000…185.0000000000 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Category | US1PC2118155 |
---|---|
Discount Schedule | PC21 |
GTIN | 3595861136144 |
Returnability | No |
Country of origin | US |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 1.8 in (4.5 cm) |
Package 1 Width | 6.5 in (16.5 cm) |
Package 1 Length | 12.6 in (32.0 cm) |
Package 1 Weight | 16.2 oz (459.0 g) |
Warranty | 18 months |
---|
