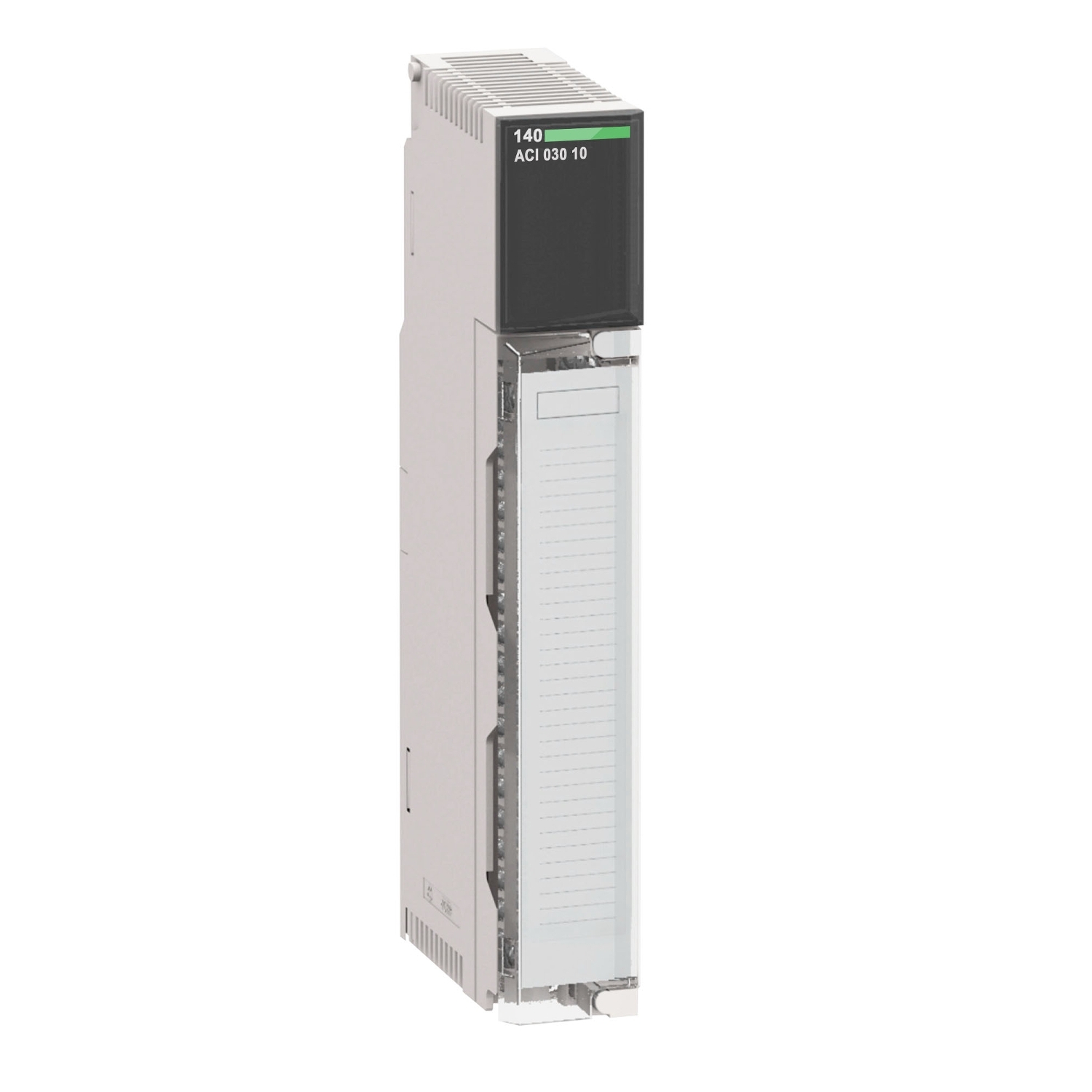

analog input module Modicon Quantum – 8 I Ni / Pt 100, 200, 500, 1000
140ARI03010
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Analogue input module |
| Analogue input number | 8 |
|---|---|
| input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input type | Temperature probe – 100…450 °C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe – 200…850 °C Pt 100, Pt 200, Pt 500, Pt 1000 Temperature probe – 60…180 °C Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000 Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 |
| Analogue input resolution | 13 bits |
| Input impedance | >= 10 MOhm |
| Absolute accuracy error | 0.1 °C |
| Linearity error | +/- 0.01 % full scale +/- 0.5 °C |
| Accuracy drift according to temperature | +/- 0.5 °C 77.0000000000 °F (25 °C) +/- 0.9 °C 32.0000000000…140.0000000000 °F (0…60 °C) |
| Isolation between channels and bus | 1780 V AC 47…63 Hz 60 s 2500 V DC 60 s |
| Isolation between channels | 300 Vrms AC |
| Update time | 1200 ms 3 wires 640 ms 2 wires/4 wires |
| Fault type | Broken wire Overtacking scale |
| marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green) for external fault 1 LED (red) for channel is turned on 8 LEDs (green) for channel fault 8 LEDs (red) |
| Bus current requirement | 200 mA |
| Power dissipation in W | 1 W |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Standards | UL 508 CSA C22.2 No 142 |
|---|---|
| Product Certifications | FM Class 1 Division 2 cUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32.0000000000…140.0000000000 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40.0000000000…185.0000000000 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595861133167 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.9 in (4.7 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.4 in (31.4 cm) |
| Package 1 Weight | 15.5 oz (440.0 g) |
| Warranty | 18 months |
|---|
