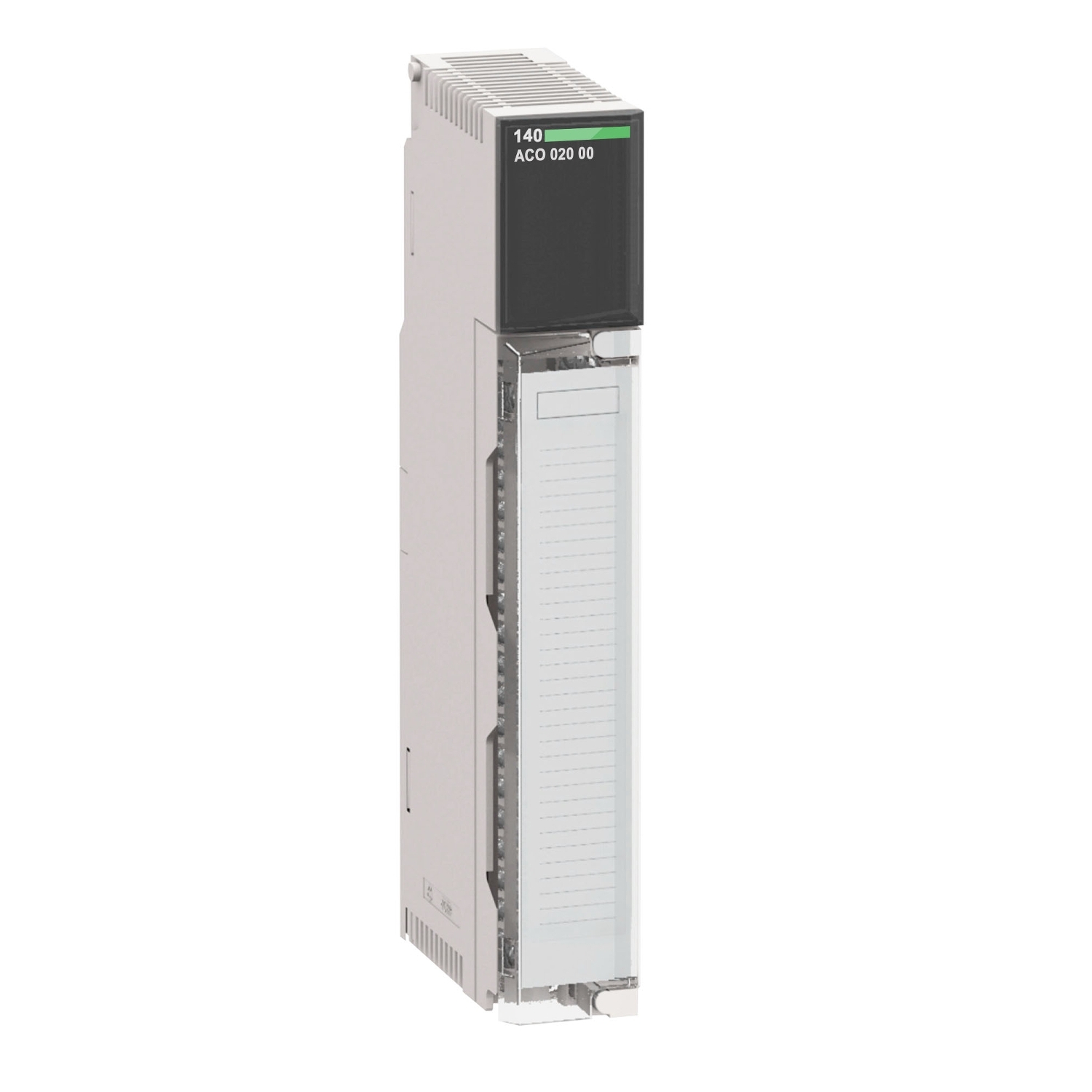

analog output module Modicon Quantum – 4 O – 4..20 mA, 12 bits bipolar current
140ACO02000
| Range of Product | Modicon Quantum automation platform |
|---|---|
| Product or Component Type | Analogue output module |
| Analogue output number | 4 |
|---|---|
| Addressing requirement | 4 output words |
| Loop voltage | 12…30 V DC |
| Maximum voltage drop | <30 V 20 mA |
| Analogue output range | 4…20 mA 0…4096 counts, 12 bits bipolar current |
| Absolute accuracy error | +/- 0.20 % of full scale 77 °F (25 °C) |
| Linearity | +/- 1 LSB |
| Accuracy drift according to temperature | +/- 0.004 % of full scale/°C +/- 0.007 % of full scale/°C maximum |
| Isolation between channels | 500 V 47…63 Hz AC 750 V for 1 minute DC |
| Update time | 3 ms |
| Setting time | 900 µs to +/- 0.1 % of the final value |
| Fault type | Open circuit 4…20 mA |
| Bus current requirement | 480 mA |
| Maximum power dissipation in W | 5.3 W |
| External power requirement | 12…30 V |
| marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green) for external fault 1 LED (red) for channel is turned on 4 LEDs (green) for channel fault 4 LEDs (red) |
| Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Product Certifications | FM Class 1 Division 2 cUL |
|---|---|
| Standards | CSA C22.2 No 142 UL 508 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
| Category | US1PC2118155 |
|---|---|
| Discount Schedule | PC21 |
| GTIN | 3595861126572 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.9 in (4.8 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 12.4 in (31.5 cm) |
| Package 1 Weight | 16.1 oz (457.0 g) |
| Warranty | 18 months |
|---|
